PlexiDor Performance In Wall Mount Cat & Dog Door

PlexiDor - Product #: PD WALL SM SV

Only 996 left!
Click here to see our current discounts.

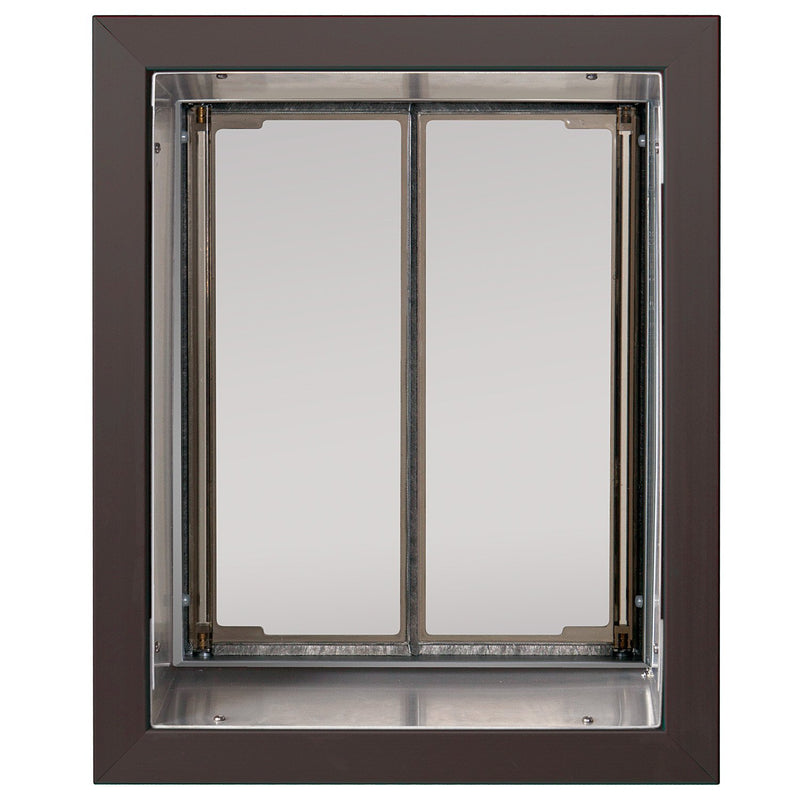

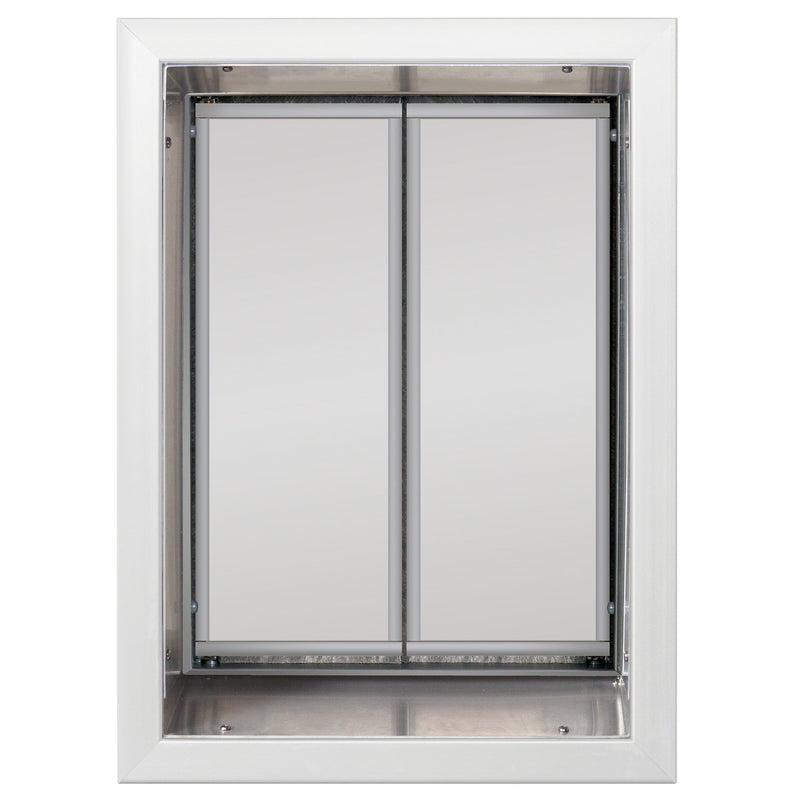

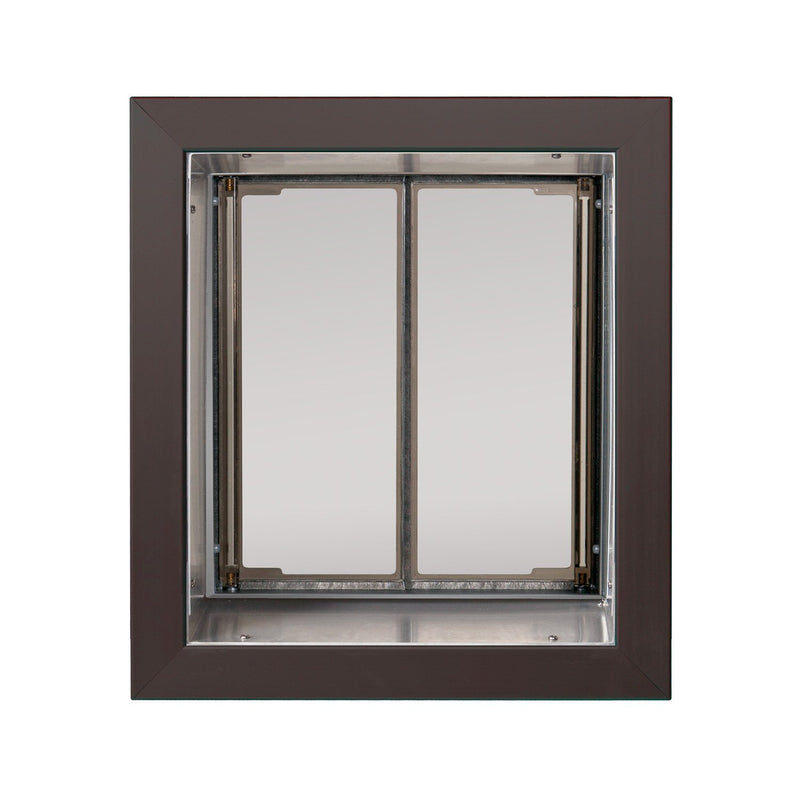

PlexiDor Pet Doors Wall Entry Mounted Units - Best Cat & Dog Door for Interior or Exterior Through Wall Installation

PlexiDor In-Wall Pet Doors are some of the highest quality panel style series of dog doors on the market. Semi-indestructible pet door panels made from shatter resistant dual-thermo pane acrylic. There is simply no other pet door that matches the quality, durability, or security of a PlexiDor Performance Wall Mounted Pet Door.

Plexidor Wall Entry Pet Door Key Features

Easiest Door for Any Pet, Big or Small- PlexiDor Performance see-through K9 composite panels swing open from the sides like old style saloon doors. They are uniquely designed to open very easily with a gentle push, making it the best pet door for homes with tiny and/or large pets. The panels then quietly swing closed by themselves, thanks to built-in heavy duty springs so your pets will never get scared.

Built to Last - The panels are made from a special K9 composite which resists damage from sunlight, extreme temperature, and heavy impact. Both exterior and interior frames are made from a heavy duty anodized aluminum, which is durable enough to prevent rust, bending, cracking, and warping. The corners are reinforced to keep their shapes even after years of heavy use. This is all backed by a 10 Year Warranty.

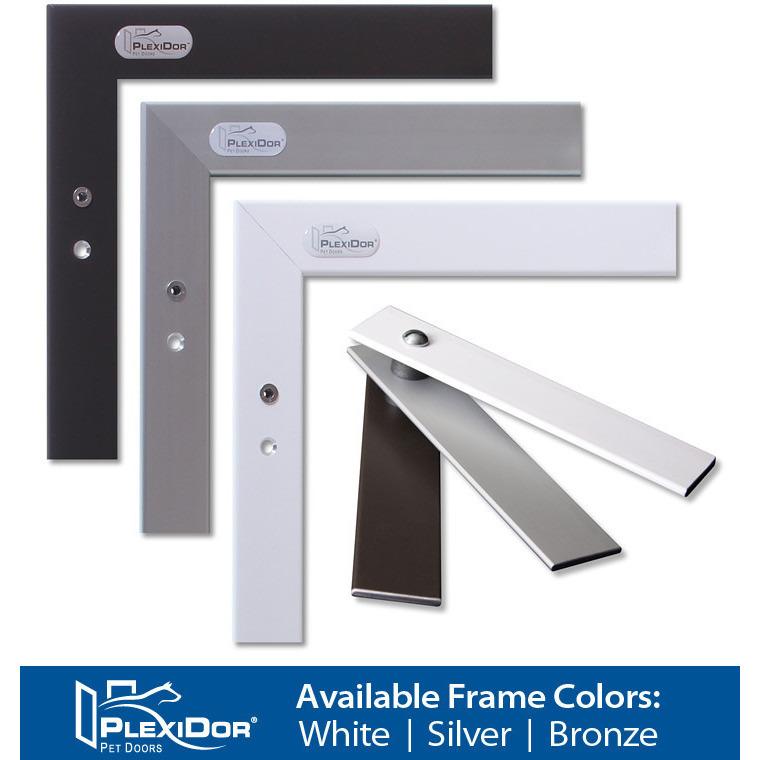

Best Looking Pet Door for Any Home - The frames also come in three beautiful finishes that look great in any home. This includes a baked-on white or bronze, or an anodized silver (a similar finish to stainless steel appliances in your home).

Highest Energy Efficiency to Save on Energy Bills - Each PlexiDor is made of dual thermo-pane panels, which are also lined with a high-density, nylon pile, weather seal. This industrial-grade seal wraps tightly around all four edges for superior draft control. This means that no matter where you are in the United States, in the middle of a winter blizzard or desert heat wave, your Plexidor is there saving you money.

Versatile, Installs Through Almost Any Material - Wall units were designed to install into interior walls or as well as into stud, brick, block, or cement exterior walls from 4 to 12 inches thick.

Extra Secure to Keep Your Dog In, and Unwanted Critters Out - For everyday use, the medium, large, and XL size PlexiDors have a key lock, while the small size has a 4-way manual lock. For extended periods away from home, sizes Medium and up also include a heavy duty 20-guage steel locking security plate cover that fastens to the inside of the pet door with four bolts for a very secure lock.

Keeps Water Out - Each wall unit includes a sturdy anondized aluminum tunnel to connect the interior and exterior frames. Unlike cheaper pet doors, the unique design of the Plexidor tunnel is slopes outward to keep water out.

EXTRA Protection from the Elements (Optional) - The PlexiDor Awning (sold separately) can be added to any PlexiDor. Not only does it prevent rain, sun, snow, and wind from entering through the pet door. On top of this, it makes the door quieter and easier to use in harsh weather conditions AND helps to lower energy bills even more.

Plexidor Wall Mounted Pet Door - Sizing Information

Need help finding the best size? Call or E-mail us and we'll help you find the right size for your cat or dog!

Proudly manufactured in the USA!

We recommend using our Max Weight to determine the best Pet Door Size. However, if your cat or dog is right at a Recommended Maximum Weight, then it would be best to measure them from the ground to the top of the shoulders. If you are measuring, it is important to keep in mind the following:

  1. Cats and dogs will both duck their heads and lift their feet to go through a door.
  2. For homes with large and small pets, a PlexioDor will open easily enough for smaller pets to use larger pet doors.
  3. Almost every door will be installed a few inches above ground level. Generally this is anywhere 2" to 14" depending on the height of the smallest cats/dogs is.

With this in mind, it is best to make sure that the top of the Opening Dimensions are about 2" above the the shoulders of your largest dog.

Click on the Sizing & Measuring tab for even more details on how to measure the right size for your pet. You can also see our Printable PlexiDor Sizing & Measuring PDF File Here

Door Size Recommended Max Weight Opening Dimensions (W x H) Outside Rough Cut Hole* (W x H) Overall (W x H)
Small Dogs up to 9 lbs
Cats up to 24 lbs
6.5" x 7.25" 8.375" x 10.125" 10" x 12"

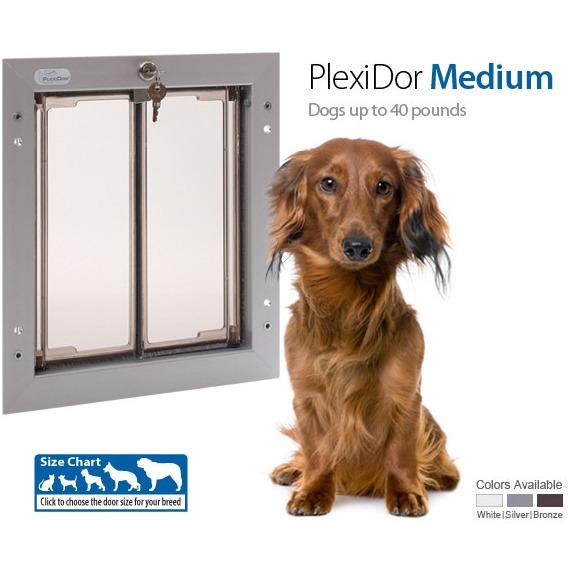

Medium Dogs up to 40 lbs 9" x 12" 11.875"x 15.25" 13.75" x 17.5"
Large Dogs up to 100 lbs 11.75" x 16" 14.5" x 19" 16.5" x 21.25"
Extra Large Dogs up to 220 lbs 16" x 23.75" 18.5" x 26.5" 20.5" x 28.75"

*Note: The Inside Rough Cut Hole will be a slightly smaller dimension than the outside.

PlexiDor Size Specific Features

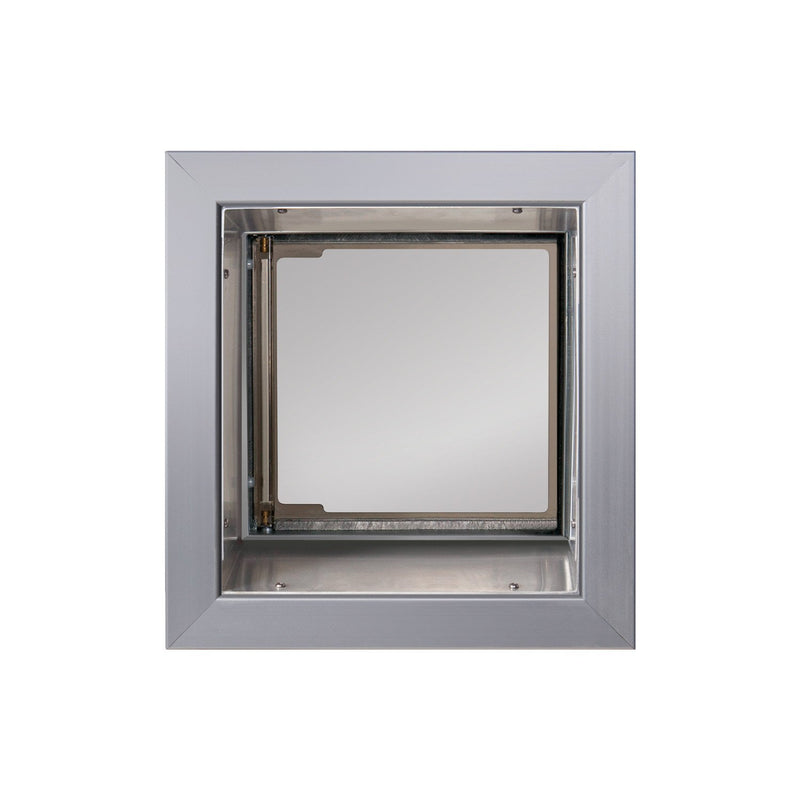

The PlexiDor Small units are intended for cats and small dogs. It opens from left to right with precision smoothness and the panel swings so easily, even the smallest kitten or puppy can push the door open.

The panels on the PlexiDor Extra Large dog door models are virtually indestructible. Designed to accommodate large dogs up to 220 lbs that like to chew, the dog door panels are manufactured using a solid 3/8 inch thick sheet of shatter resistant acrylic. They are also equipped with a factory installed chew proof aluminum trim around all four edges.

PlexiDor 10 Year Warranty

PlexiDor Performance Pet Door is designed with the highest quality material. All manually opened PlexiDor pet doors are covered by a 10 year limited residential warranty. Any defective part will be repaired or replaced without expense to the customer (including standard shipping service) for 10 years from date of purchase.

PlexiDor Pet Door Warranty Details - Printer Friendly Version

PlexiDor In Wall Pet Door - Additional Product Details

  • Manufacturer - Plexidor
  • Your Maximum Pet Size - Cats, Large Cats, Small Dogs, Medium Dogs, Large Dogs, X-Large Dogs
  • Climate Suitability - Temperate-3 Season
  • Wind Resistance - Average
  • Sealing Value - High
  • Self-Framing - Yes
  • Frame Material - Extruded Aluminum
  • Insulation Value - Average
  • Flap Material - Acrylic
  • Flap Design - Single, Rigid, Insulated Flap
  • Flap Colors - Clear
  • Flap Thickness - 3/8”
  • Replacement Flaps Available - Yes
  • Ability to Lock Flap - Separate Locking Cover-Loads from Front, Built-In 2-Way Locking
  • Locking Cover Material - Steel
  • Can Be Installed In - Walls, Kennel Wall
  • Warranty Period - 5 years limited

    How To Measure Your Pet & Choose a Pet Door

    We recommend the “Cardboard Test” to ensure correct size for your pet. Using the OPENING SIZE measurement in the charts, cut a hole in a piece of cardboard, and see if your pet can pass through easily. Or wedge open a house door the OPENING WIDTH, and block off the OPENING HEIGHT (starting just above your pet’s shoulder) and call your pet through. Pets duck their heads as they push open their doggie door or cat door and step through it, so ideally you should install the dog or cat door with the top of the opening just above your pet’s shoulder. But any position will do as long as your dog or cat can open the door and get through comfortably.

     PlexDor Measuring Guide

    PlexiDor Size Guide


    Have a Question?

    Be the first to ask a question about this.

    Ask a Question

    What are the differences between a vinyl flap door and a PlexiDor Performance Pet Door?
    Vinyl flap doors (“mud flaps”) require replacement of the flap when they wear out, sometimes once or twice a year. The flap may turn yellow, dry out or crack and eventually fall apart. Some dogs will chew the flap. Vinyl replacement flaps cost anywhere from $10 to $100 depending on the size and manufacturer. Most flap doors use magnets to attach the flap to the plastic frame. If the flap shrinks from UV sunlight, the magnets may not connect and seal the opening properly, which will increase the cost of heating and cooling your home.

    Will a pet door compromise the security of our home?

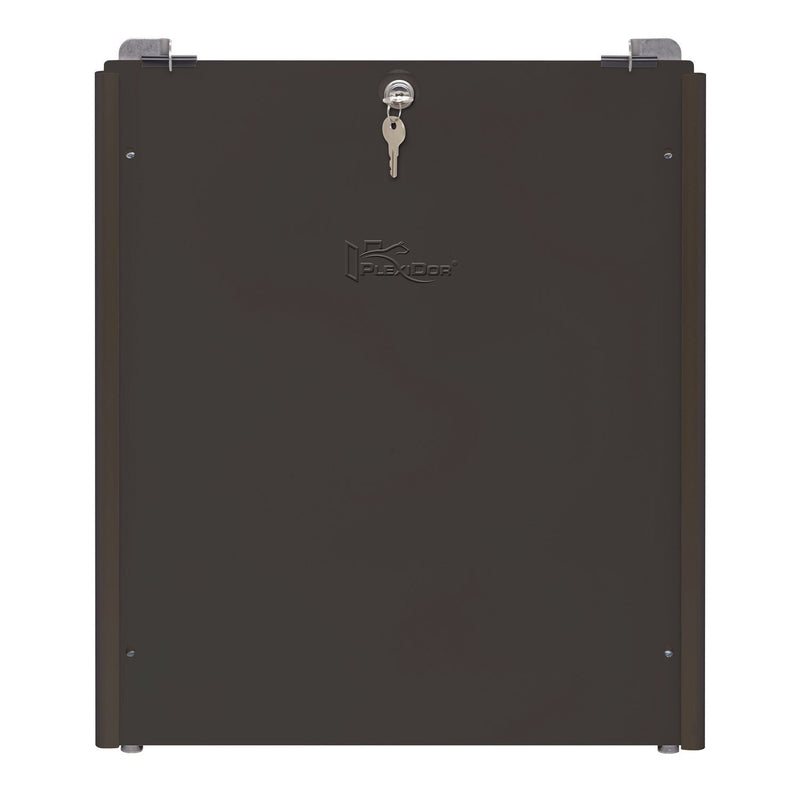

    PlexiDor comes equipped with a lock and 2 keys plus a steel security plate. You can lock the door from the inside whenever you like and attach the steel security plate when leaving your home for extended period. The interior and exterior frame of the PlexiDor is hardened aluminum. This adds strength to the entire design and makes it virtually impossible for an intruder to get past. The small PlexiDor unit for cats and small dogs up to 9 pounds does not come with a security plate since the opening is too small for an intruder to get through.

    Is it difficult to train my pet to use a pet door?
    No. It is usually a quick and easy process. Most cats and dogs learn to use a pet door in 5 seconds to 5 days. Do not push the pet through the door. Start with propping a panel open and coaxing the pet with a treat.

    Can my cat use a dog door?
    Yes, most cats will use up to a large PlexiDor. You may need to go up in size to keep the top of the pet door high enough for the dog – shoulder height – and the bottom low enough for the cat (approximately 5”).

    Do you have a pet door that will let my dog out and keep the cats in?
    The PlexiDor electronic pet door opens only for pets with a key. There is, however, no guarantee that a cat won’t run out together with the dog. Thus, we cannot promise that our pet door will let the dog out and keep the cats in.

    Can I paint my PlexiDor?
    Yes. Just prime and paint the pet door.

    What kind of warranty does PlexiDor come with?
    PlexiDor pet doors come with a 5 year warranty.

    Will I ever need to replace anything on a PlexiDor pet door?
    About every 5 to 8 years the industrial weather seal will need to be replaced. One kit will cover both saloon style panels, and it is easy to install. PlexiDor is manufactured in Bradenton, FL, and if you ever have a problem with the door, it is easy to obtain replacement parts.

    Where can I install a PlexiDor pet door?
    PlexiDor pet doors can be installed in doors, walls, or a sliding glass patio panel. Wall units can be installed in a wall up to 12 inches thick and come with an aluminum tunnel kit that connects the interior and exterior frame. Chances are if you already own another brand of pet door, the existing cut opening can be used to install a PlexiDor with only minor modification.



    PlexiDor Wall Installation

    PlexiDor Dog Door Installation - Full Length (~56 Minutes)
