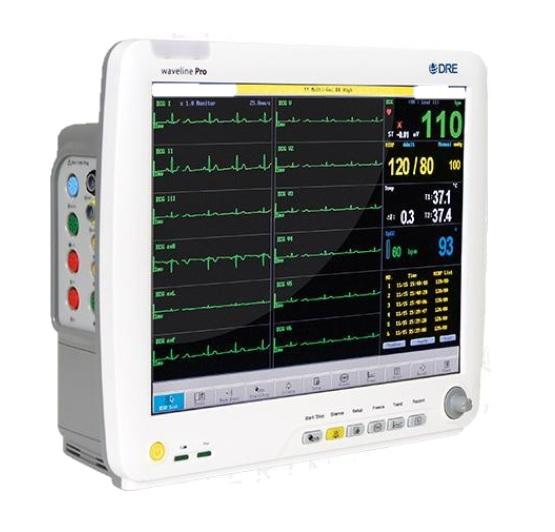

DRE Waveline Pro Multi-function Veterinary Monitor

DRE Veterinary - Product #: DR-60009BV

  • Save $97400 (14%)
  • List Price: $7,144.00
  • SALE: $6,170.00

Only 0 left!

Why Buy From Pet Pro Supply Co?

Need Help? See our FAQ/Help Page

Superior flexibility and performance with a premium flat panel display is found in DRE's newest version of the Waveline monitor series. The DRE Waveline Pro can be used on small, medium, or large animals. An applicable monitor for veterinary surgical suites and research facilities — Now with Masimo SET Pulse Oximetry!

The DRE Waveline Pro displays as many as eight colorful waveforms on a crisp 15” high resolution display. It is lightweight, portable and measures multiple parameters, including ECG (3 or 5 lead) with ST segment monitoring, resp., dual temp., Masimo SpO2 and NIBP. Configurations are available that measure capnography, dual channel IBP, and anesthetic agents (five agents, Auto ID, N2O, FiO2 and Sidestream EtCO2), and that have a built-in thermal printer.

Multiple Configurations Available:

  • Standard Parameters: ECG, Masimo Pulse Oximetry, 2 x Temperature, NIBP, Respiration, and Printer
  • Optional Parameters: Invasive Blood Pressures, CO2 (Mainstream or Sidestream) and Drager Built-in Anesthetic Agent Module
  • Comes with standard veterinary accessories

Key Features:

  • EtCO2 (mainstream or sidestream) (Respironics)
  • Multi-lead simultaneous ECG monitoring
  • Automatically set alarm limits
  • New for 2015! Masimo SET Pulse Oximetry — ask us for details
  • Graphical and tabular trending
  • Color-coded alarms
  • Patient data entry
  • Battery backup (two removable batteries)
  • Built-in thermal recorder
  • Networking capability
  • Large (15”), high resolution flat panel display
  • Available with a built-in thermal printer


Physical Dimensions & Weight:

  • Base Unit: 12.1”/309 mm (H) x 14.4”/365 mm (W) x 6.3”/159 mm (D)
  • Weight: 17.6 lbs/8.0 kgs (including anesthetic agents module and batteries)


  • Small, Medium, and Large animal

Performance Specifications:

  • Display: 15” color TFT, Resolution 1024 x 768
  • Trace: 8 waveforms
  • Indicators:
    • Alarm indicator
    • Power indicator
    • QRS beep and alarm sound
  • Trend time: 1 – 48 hours
  • Recorder:
    • Built-in, thermal array, 2 channels
    • Record width: 1.9”/48 mm
    • Recorder paper: 2”/50 mm
    • Record speed: 25 mm/s, 50 mm/s

For Full Detailed Specifications including ECG, RESP, Temperature, SPO2, NIBP & Accuracy, IBP, ETCO2 & Accuracy, Anesthetic Agents, and Power, please see this page:



Optional Accessories (Sold Separately):

  • 3 Lead ECG Cable for DRE Waveline EZ, Touch, and Pro
  • 5 Lead ECG Cable for DRE Waveline EZ, Touch, and Pro
  • 3-Lead ECG Snap Set for Waveline
  • Replaceable Veterinary Alligator Clip Compatible with Waveline
  • SunTech Blood Pressure Cuffs
  • Blood Pressure hose with male luer for Waveline EZ, Touch and Pro
  • Standard IBP Transducer Cable for Waveline Touch, Pro, and EZ
  • Standard IBP Disposable Transducer for Waveline Touch, EZ, and Pro
  • Blood Pressure Transducer
  • Esophageal ECG Probe
  • Oral/Rectal Temperature Probe for Waveline Touch, Pro, & EZ
  • CAPNOSTAT 5 Mainstream CO2 Sensor
  • Adult/Pediatric Airway Adapter for Capnostat 5
  • Neonate Airway Adapter for Capnostat 5
  • Side Stream CO2 Sensor for DRE Waveline Series
  • Sidestream CO2 Module Bracket
  • CO2 Sampling Line for DRE Waveline Series Monitors
  • CO2 Sampling Line with Dehumidification Tubing for Waveline Monitors
  • Sampling Line Male/Male Luer Connection
  • T Adapter for Neonatal CO2 Sampling
  • Masimo M-LCNS 10FT Patient Cable for the Waveline Series Monitors
  • Masimo M-LCNS 4FT Patient Cable for the Waveline Series Monitors
  • Masimo Reusable Animal Clip Sensor
  • Masimo Reusable Animal Multisite Sensor
  • Masimo Reusable Animal Transflectance Sensor
  • Nellcor V-Sat | Y-Site SpO2 Vet Probe: 9 Pin
  • 5 Pin Digital SPO2 Cable for Waveline EZ, Touch and Pro
  • Pin Digital SPO2 Y-Site Probe for Waveline EZ, Touch and Pro
  • Water Trap with Adaptor for Waveline Pro
  • Power Cord
  • Battery for Waveline Pro
  • Recording Paper for DRE Waveline Series Monitors
  • Waveline Rolling Monitor Stand
  • Waveline Wall Mount Bracket
  • Mounting Plate for Waveline Series

DRE Product ID 2012
