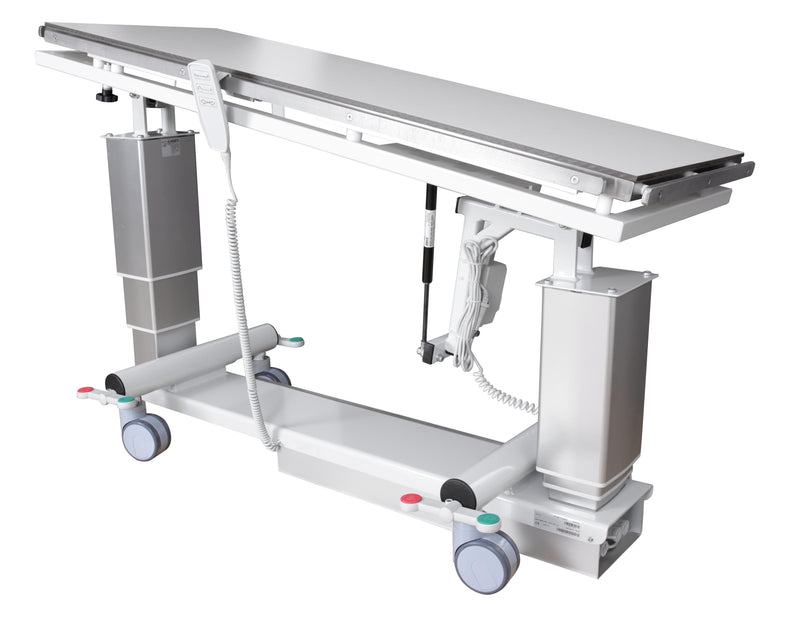

DRE Pannomed O.P. Veterinary Surgical Table
Why Buy From Pet Pro Supply Co?
A High-end Specialty procedure veterinary table designed for opthalmology and advanced orthopedic Surgery.
The Pannomed OP Veterinary Surgical Table can be found in many emergency and critical care facilities, universities, and research facilities. The Pannomed OP system has a remote controlled height adjustment from 33.5" - 45", allowing doctors to operate in a comfortable standing or sitting position. Power Trendelenburg and Reverse Trend to 15 positions, power lateral tilt to a unique 40 degrees, and an X-Ray translucent top make this sturdy surgical table optimal for veterinary surgery especially for laparoscopy. An exclusive sliding top and optional arm rests are very beneficial for ophthalmology and neurosurgery related procedures.
- Sliding top for ophthalmic or head and neck surgical procedures
- X-Ray translucent Sliding top for use with C-ARM or optional x-ray cassette drawer
- Designed for ophthalmology, laparoscopy, and neurosurgery related procedures
- Perfect for complicated and difficult procedures
- Suitable for small animal arthroscopy
- Adjustable for sitting or standing operations
- All mechanisms are remote controlled with a joystick control box
- Electrically remote controlled height adjustable
- Movable on castors
- Longitudinal 15 degree electric tilting
- Power Lateral tilting
- 250 lb load capacity
- 110 AC outlet compatible
- OP-System with Castors
- Sliding and X-ray translucent top
- OP-Rials (set of 4)
- 4 Piece quick-release tie-down cleats
- Joystick control Box
|Electric Height Adjustment||33.5 to 45 inches (84 to 114 cm)|
|Longitudinal Electric Tilting||15°|
|Lateral Positions||Up 40° electric tilting|
|Clearance end measurement||2.5 inches from floor|
|Clearance measurement||7.25 inches middle bar/support to floor|
|Clearance measurement||18.5 inches underneath table top down to middle bar/support|
|Load Capacity||264 lbs|
|X-Ray Translucent Top Dimensions||51" L x 19.5" W (130 x 50 cm)|
|Power||110 AC outlet compatible|
|Overall Dimensions||22" W x 53" L|
|DRE Product ID||641|
Optional Accessories (Sold Separately):
- Arm Rests for Ophthalmology Procedures
- Belt with Tension Clamps
- Drawer for X-Ray Cassette
- Elbow Pad (Sold as "each")
- Extension 11.7 x 11.7 inches (30 x 30 cm)
- Extension 19.5 x 11.7 inches (50 x 30 cm)
- Insert for OP-System
- Instrument Tray 11.81 x 7.87 inches (300 x 200 mm)
- IV Pole Mount
- Lateral Positioners (Sold as "each")
- Leg Support with Fixation Clamp
- Limb Holder
- Narcotic Bow
- Quick-Release Tie-Down Cleat (sold as "each")
- Rail Extension (200mm/pair)
- Table Traction Device
- Tilting Stainless Steel Dish with Grid
